We DPS ENTERPRISES(WINGERS) are

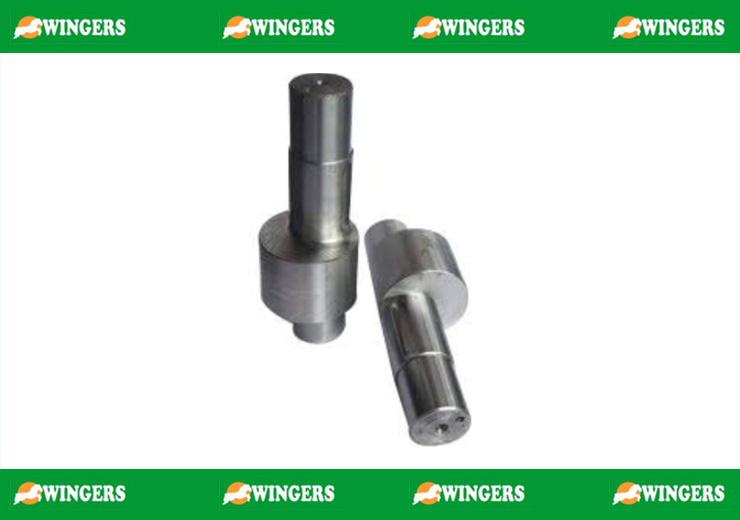

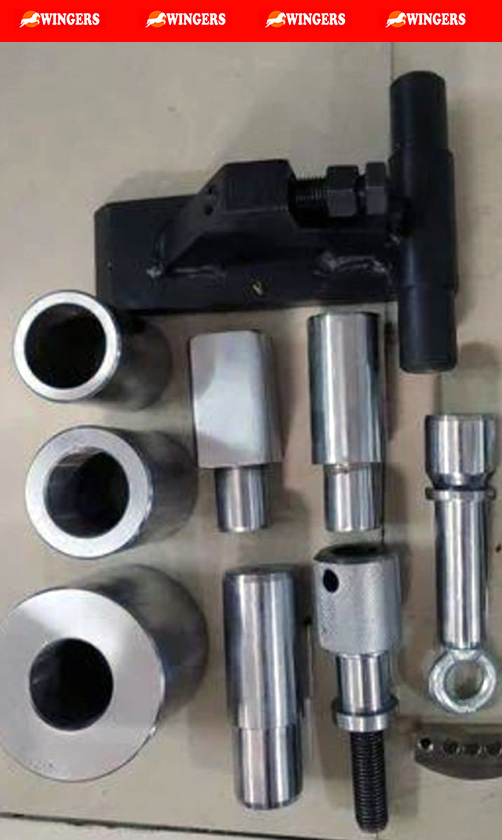

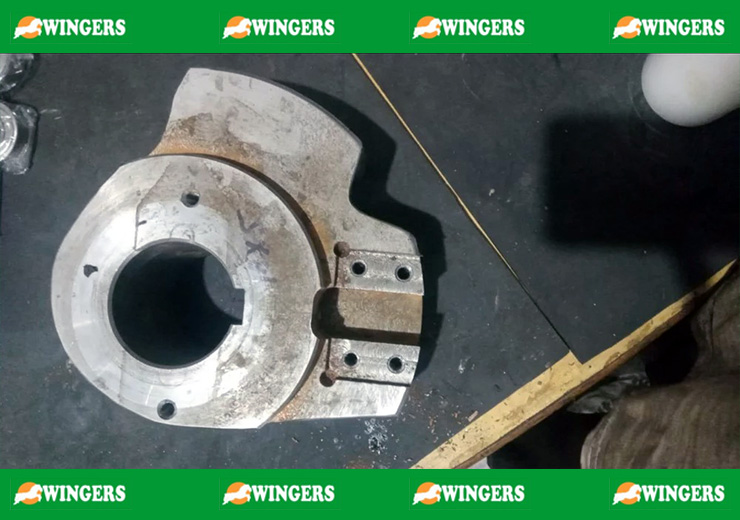

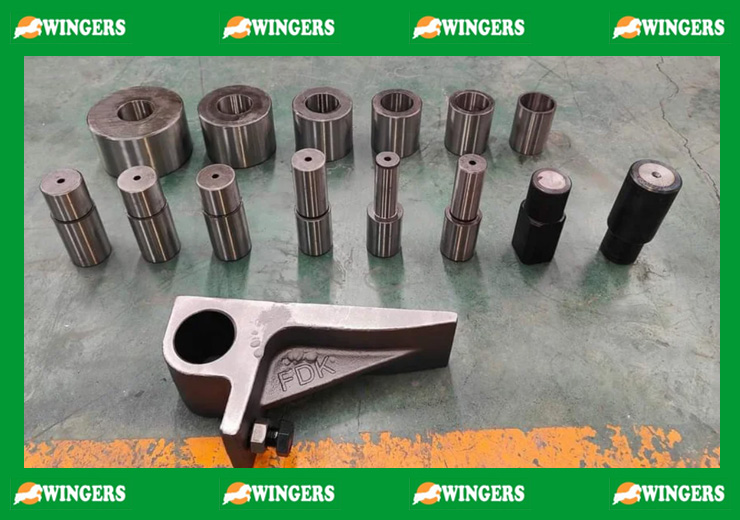

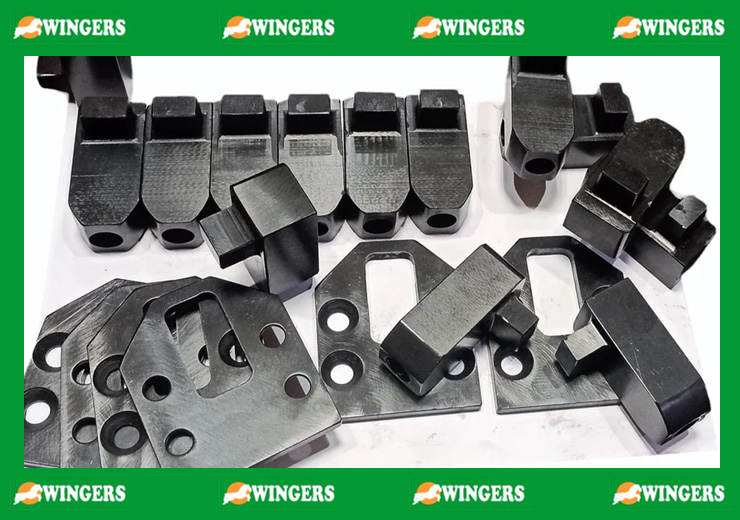

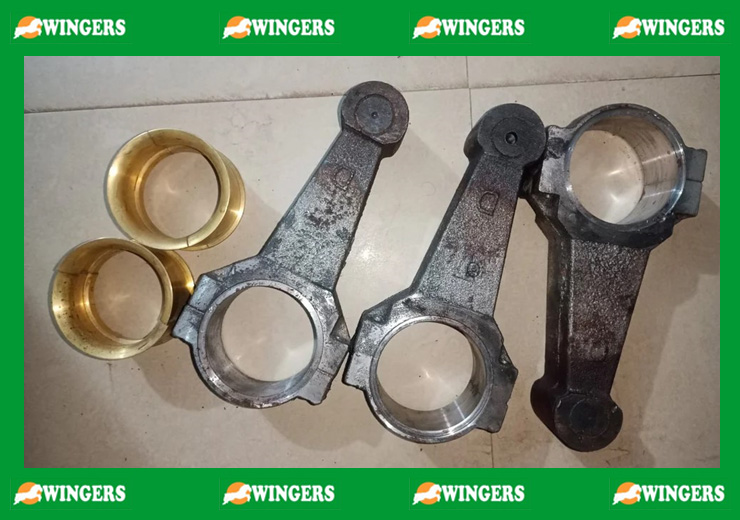

engaged in supplying and trading of all kind of spare parts of bar bending machine and bar cutting
machine spare parts mini batching plant (rm machine)( ex-850, ex-1050). We are also provide service
and reparing of machine.
Construction equipment and spare parts & general order supplier

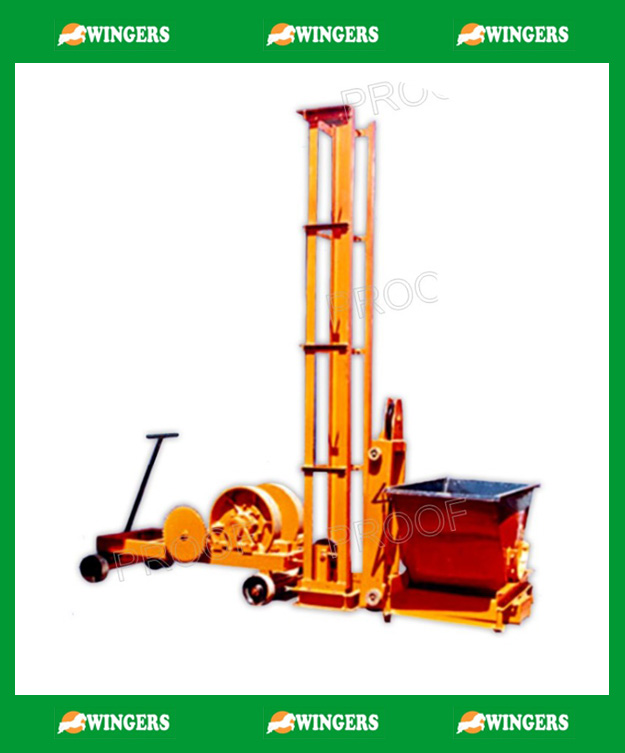

Wingers Builder hoist is specially designed to lift material to various heights at Construction Sites.
Most of the structure is fabricated in 3m length for easy transportation and assembling at site.With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.
Wingers has successfully erected a 2 ton winch upto a height of 140mts.
| 1 | WINCH DRUM | Single Drum made of superior grade casting. Winch can hold 300 ft of Wire Rope. |
|---|---|---|
| 2 | CAPACITY | 1 M.Ton(1000 kgs) Gross Weight. |
| 3 | HEIGHT | 80 Mtrs, max. |
| 4 | CONCRETE CARRYING SKIP | (Silo), 10 Cft. Capacity, WIRE ROPE: 12mm Dia. (Usha Martin). |
| 5 | TROLLEY SPEED | 20-25 Mtr./Minute |
| 6 | POWER UNIT | 12/10 H. P. Air-cooled Diesel Engine/15/10 HP CROMPTON Electric Motor with Star-Delta Starter. |
| 7 | DRIVE | Through V. Pulley or Chain and Fiber Rollers from the prime mover. |
| 8 | BEARINGS | Heavy duty taper roller bearings and G.M. Bushes. |
| 9 | BRAKES | Industrial Brake Lining adjustable type. |
| 10 | MASTS | Jig built electrically welded and fully aligned. |
| 11 | TOWER ANGLE SECTION | 65x65x6 front and 50x50x6 rear sections |
| 12 | CHASSIS | Robustly constructed of heavy steel section to withstand continuous hard and rough use and mounted on 4 nos. M.S. wheels. |
| 13 | HOUSING & GUARD | Full guards on all the gears for safety of operator and moving parts |
| 14 | TYPE | Mobile or Stationery. |
| 15 | SPECIAL FEATURES | For quick erection facility. Mast sections are made of standard lengths and rebated for instantaneous self alignment. Automatic safety locking device with double cam action can be repeatedly applied without damaging the equipment. If required the titing type bucket can be removed and Platform can be used for litting of other construction materials. |

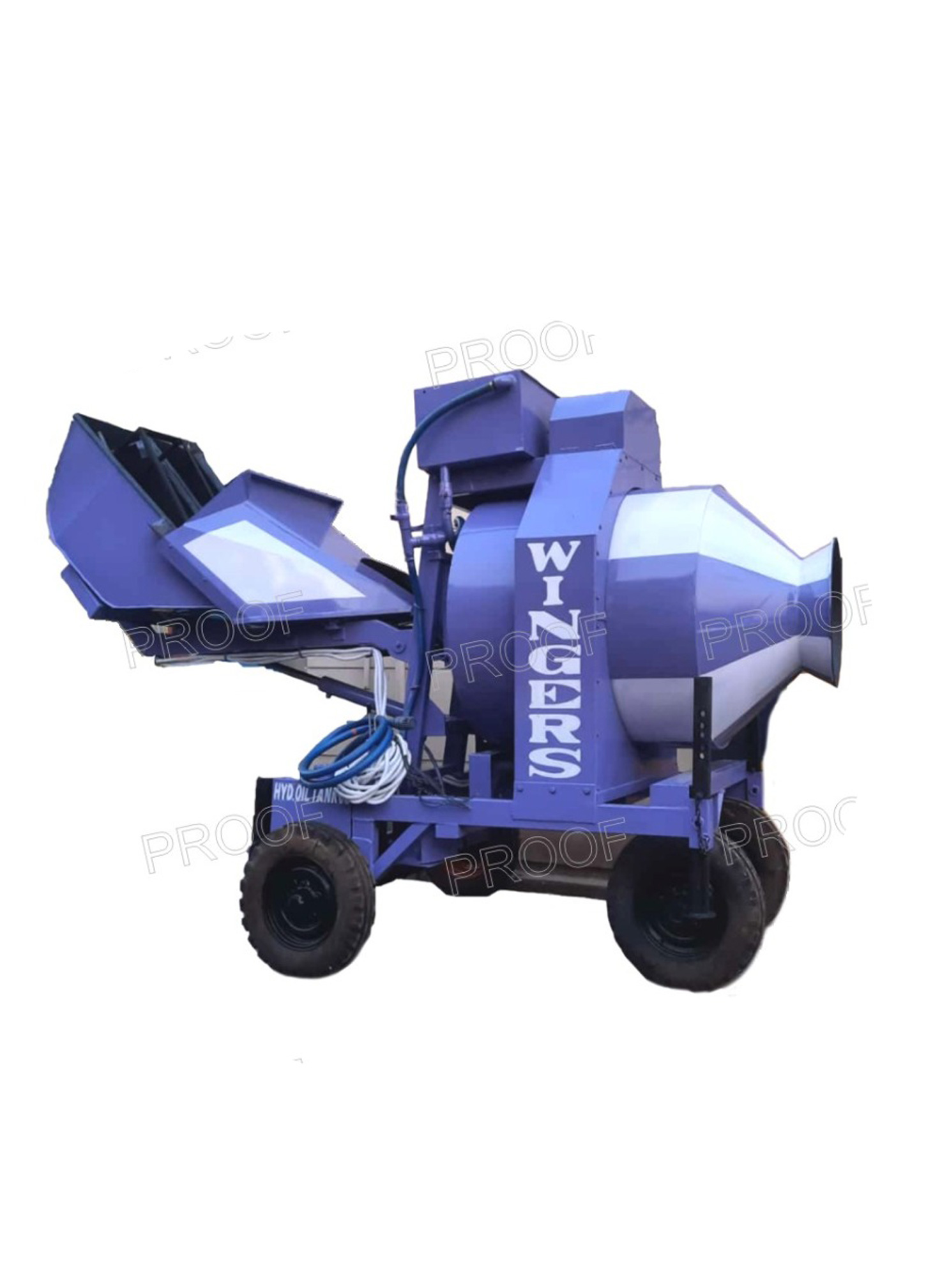

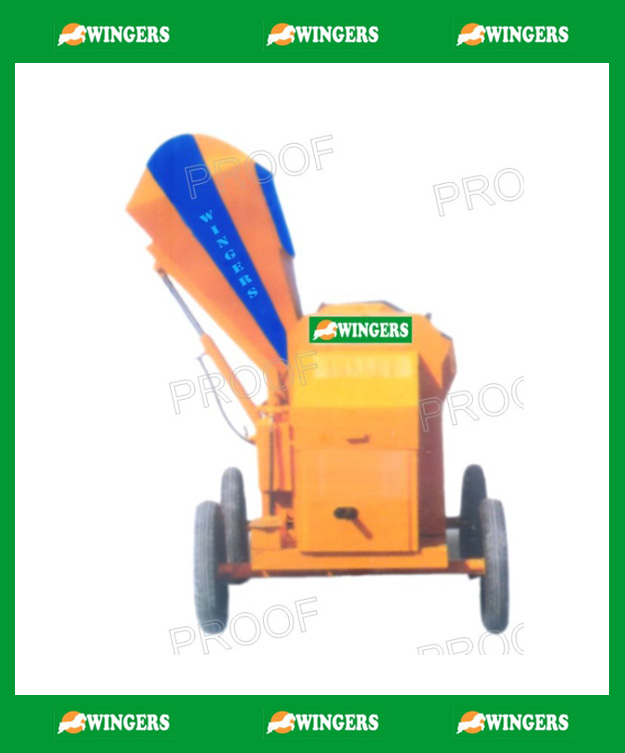

The Concrete mixer from WINGERS, a leading concrete mixer manufacturer comes with several additional safety features. These concrete mixers are innovative to meet the dynamic requirements of any leading construction company in India
| # | Model | 10/7-D/E |
|---|---|---|
| 1 | Drum Capacity | 300 Ltr |
| 2 | Drum RPM | 19 RPM |
| 3 | Overall Dimension | 260 X 230 X 230 mm |
| 4 | Prime Mover | 6 HP Kirlosker TAF 1 Engine / 5 HP Electric Motor |
| 5 | Loading Hopper | Hydraulic Operated with Heavy Duty Power Pack |
| 6 | Hydraulic Pump | 19 LPM gear pump @ 207 bar |
| 7 | Weight (Approx) | 850 Kg |

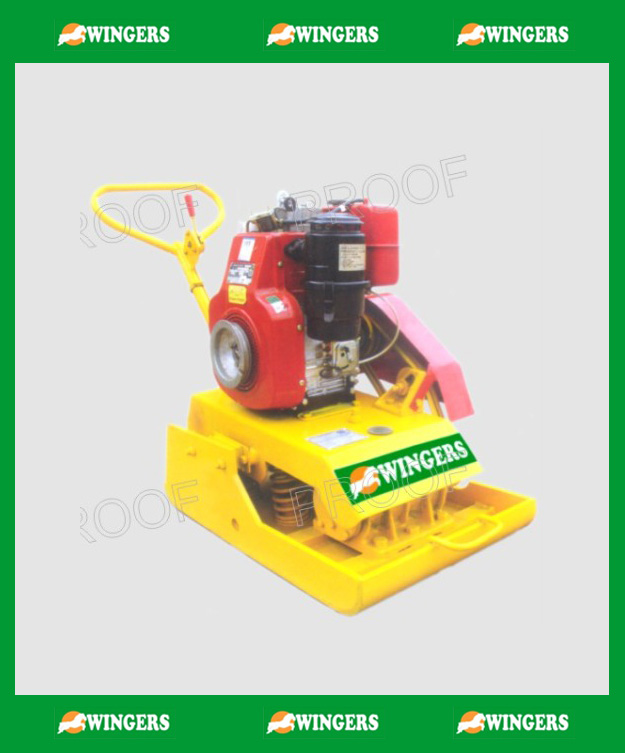

Wingers VC 25 Plate Compactor is a unique compaction machine which produces repetitive impact on soil, built, robustly with extra thick base plate having travel speed of 20m/min.
Our compactors come with infinitely variable forward and reverse speed on a diesel engine.
Also available with electric motor.
| 1 | Compaction Capacity | 6 - 8 Ton |
|---|---|---|
| 2 | Impact force upto (approx) | 3500 kg |
| 2 | Vibration frequency | 50 Hz |
| 3 | Depth effect (depending on type of soil) | 16 inc |
| 4 | Travel speed (depending on type of soil) | upto 20 M/min |
| 5 | Gradient capability | upto 20% |
| 6 | Compacting plate size | 780mm X 620mm X 490mm |
| 7 | Working area | 5500 sq. Ft./hr |
| 7 | Direction of travel | forward |

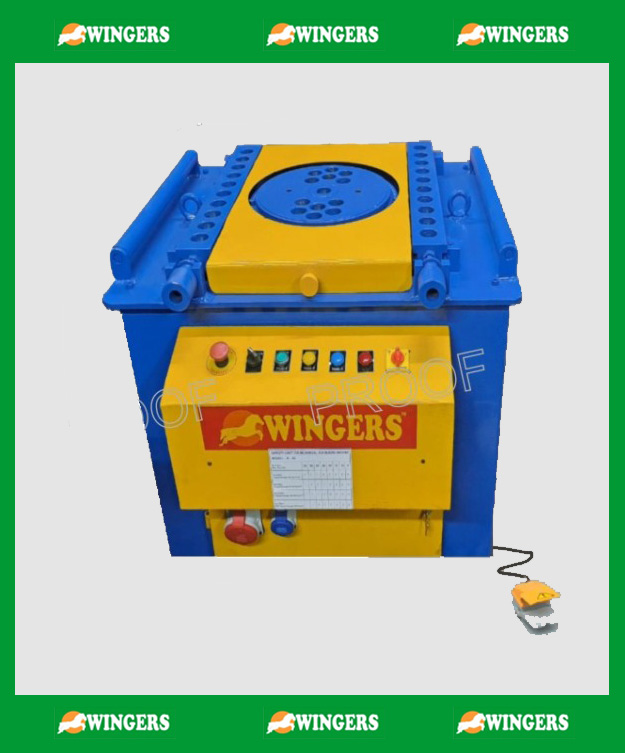

WINGERS Bar Bending Machine is a semi automatic, durable fast and cost effective machine, used for bending reinforcement bars and various forms of round bars.
Bar Bending Machine is easy to use, the machine can be operated by a layman with minimal experience.
| # | Model | R.M.E. | Motor H.P | Kg/mm 65 | Kg/mm 80 | Dimensions (LxWxH) | Approx. Weight (Kg) |
|---|---|---|---|---|---|---|---|
| 1 | B 42 | 8 | 5 | 36 16 8 | 32 16 8 | 960 x 970 x 900 mm | 700 |
| 2 | B 52 | 6 | 7.5 | 42 25 16 | 36 20 12 | 960 x 970 x 900 mm | 800 |

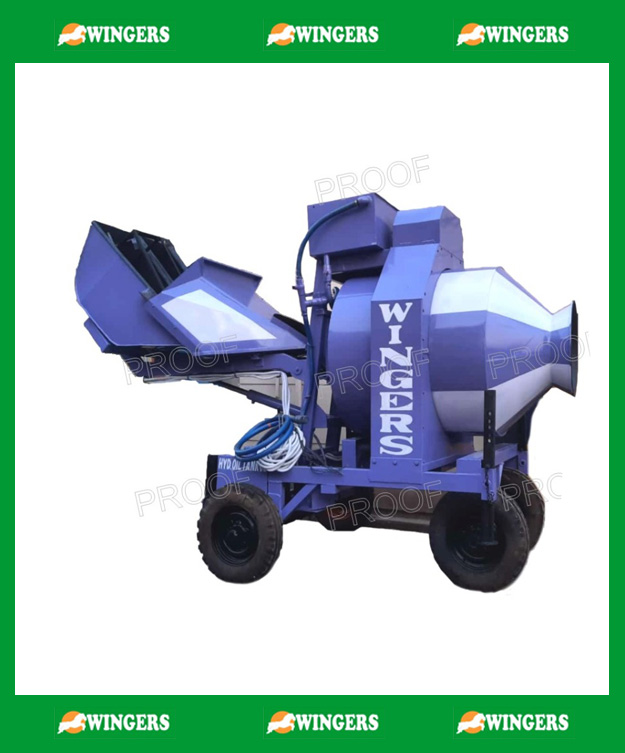

Wingers Reversible Drum Mixer has become most reliable for quality output and maintenance free operation. One of the most widely used machine tool is the reversible Drum mixer. They are the typical reversible type concrete mixer where concreting is done using a revolving drum. Designed to deliver sturdy construction a reversible drum mixer is a well engineered plece of construction machinery for carrying mixing mortar from the place where it is to be poured. It also gives enough time to the workers to mix the composition before the concrete hardens.

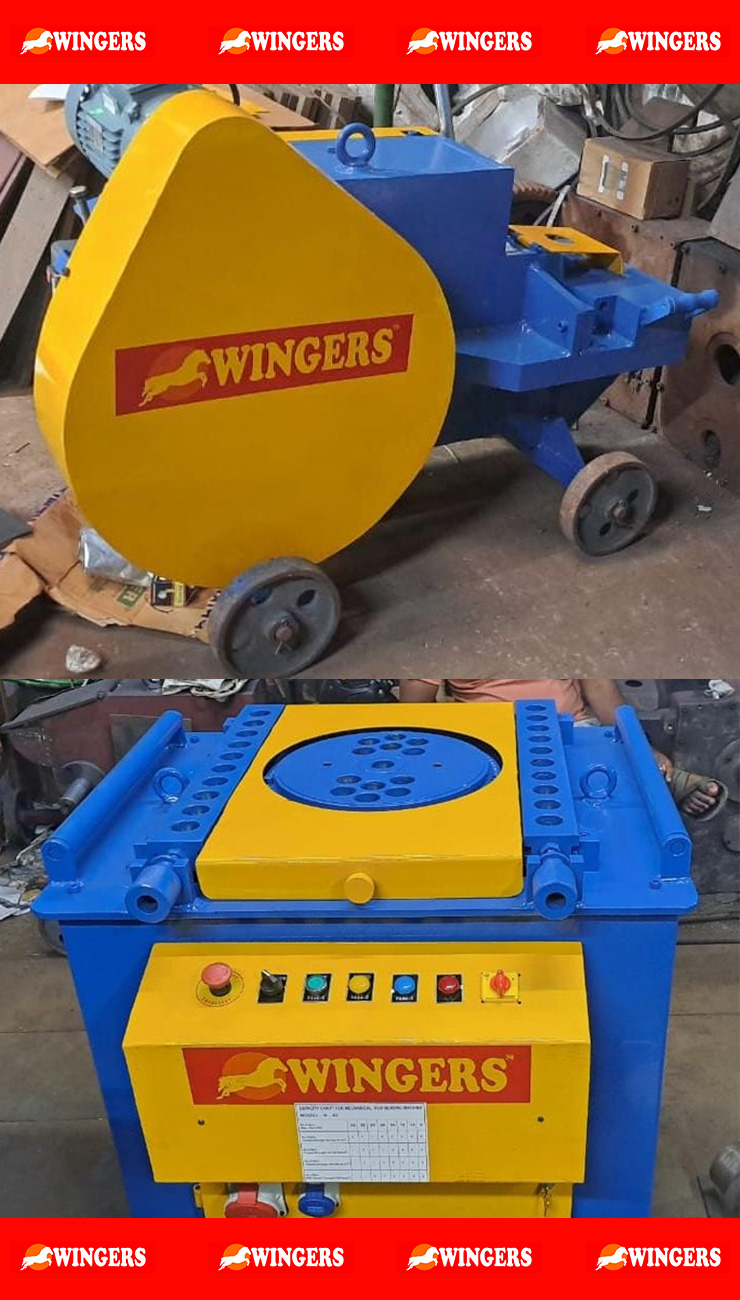

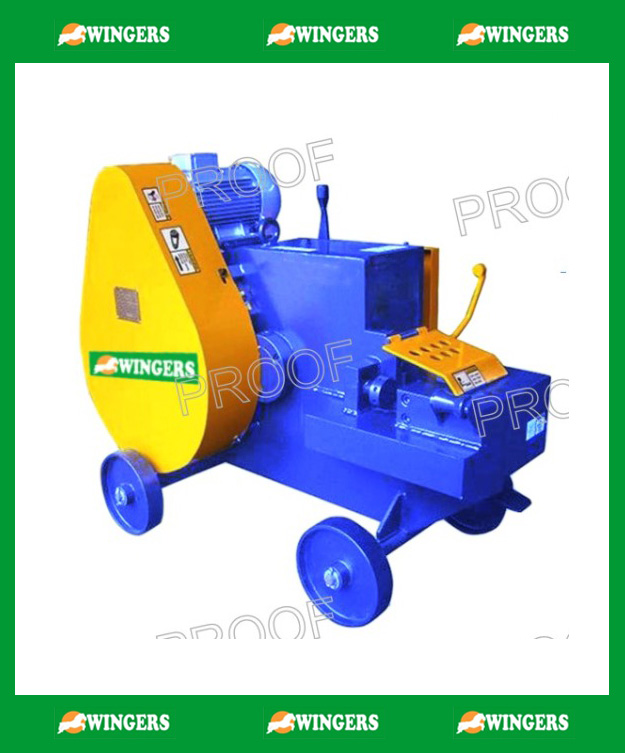

WINGERS Bar Shearing Machine is Bar Shear robustly built to with stand the stress while PROOF shearing of rebar and various forms of steel bars.
Durable fast and easy to use, this machine gives a one-shot cutting operation with perfect cutting accuracy thus minimising the use of labour and long drawncutting process for single cuts.
A high power torque generator in the form of a solid flywheel is what, gives WINGERS Bar Shearing Machines unmatched strength and robustness. A shock resistant tool steel, duly heat treated, forms the innovative Eight Edged Blade giving longer operational life to the cutting tool.
| # | Model | R.P.M. Machine |
Motor H.P | Kg/mm 65 | Kg/mm 80 | Dimensions (LxWxH) | Approx. Weight (Kg) |
|---|---|---|---|---|---|---|---|
| 1 | C 42 | 90 | 5 | 36 20 10 | 32 16 8 | 1200 x 750 x 910 mm | 680 |
